Ultimate
Protection.
Infinite
Reusability.

A person typing on a laptop keyboard with an open book beside them.

How the KOR Protection System Works.

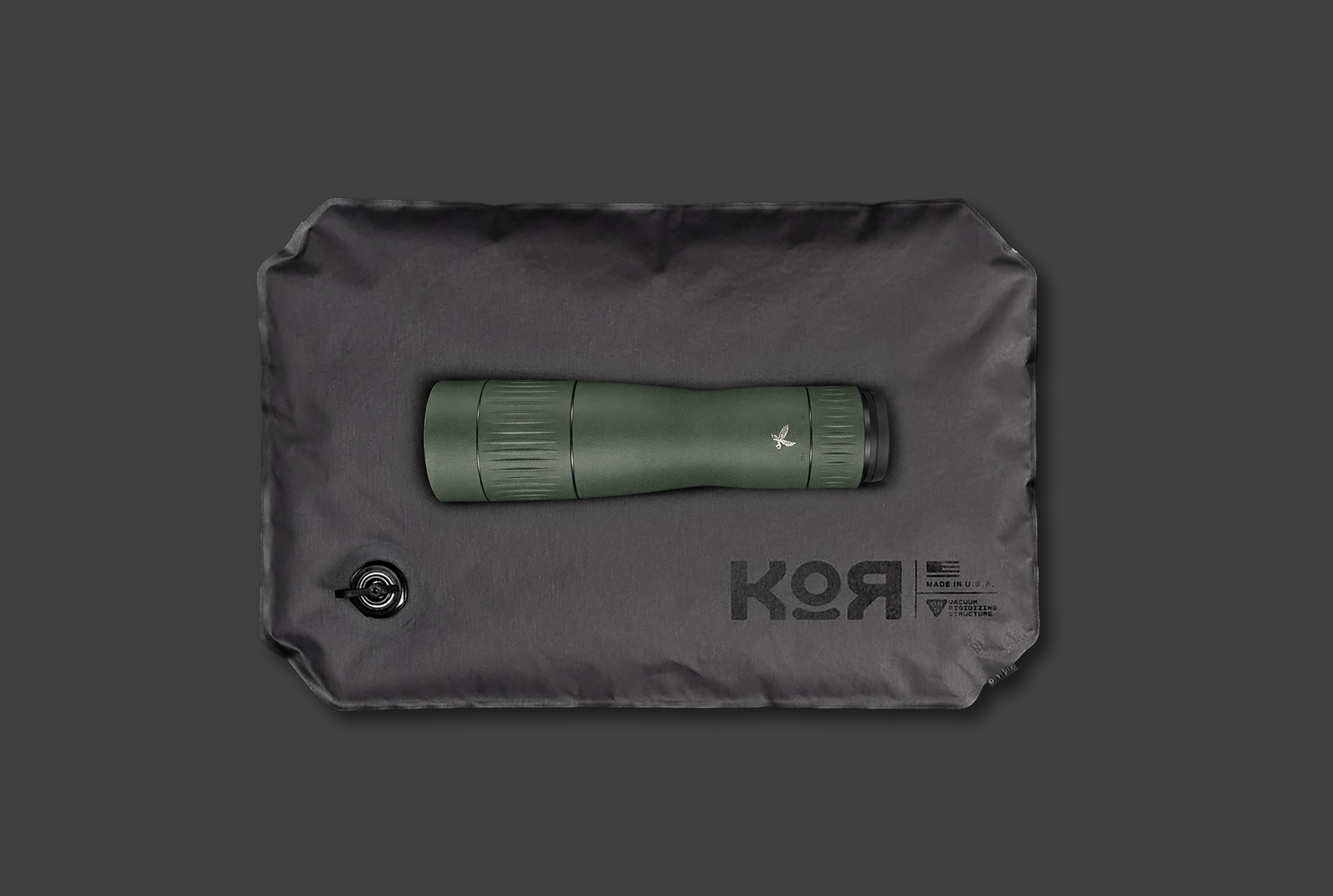

  • A green Range Finder, Optic. On a KOR Protection System single panel. In its fluid soft state On a gray background.

    Step 1 // Place Gear

    Place gear on a fluid KOR panel.

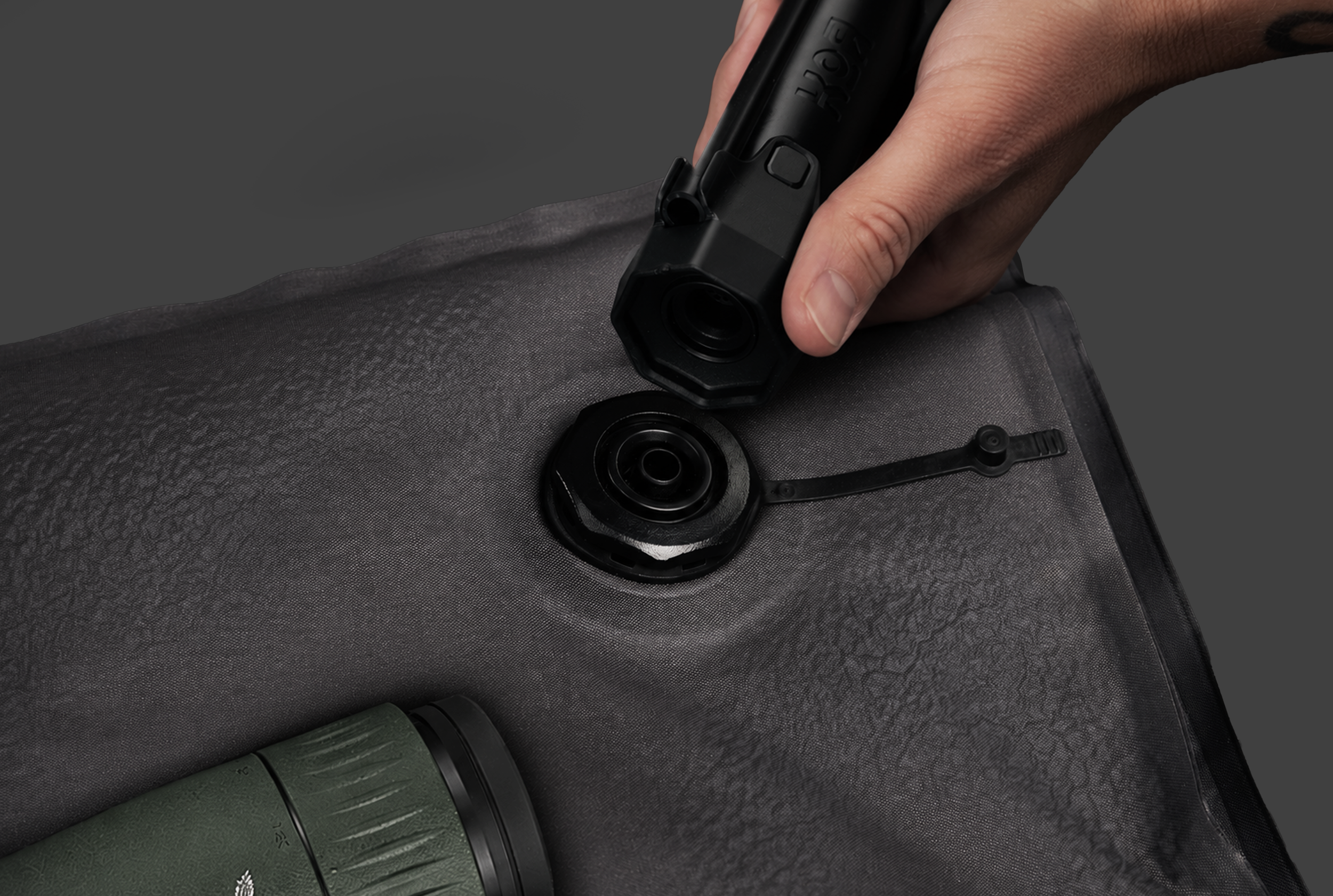

  • A close-up of a person's hand holding using the KOR vacuum pump to rigidize the KOR protection System

    Step 2 // Pull Vacuum

    Attach the pump and create a vacuum by removing the air, until the KOR Panel becomes rigid.

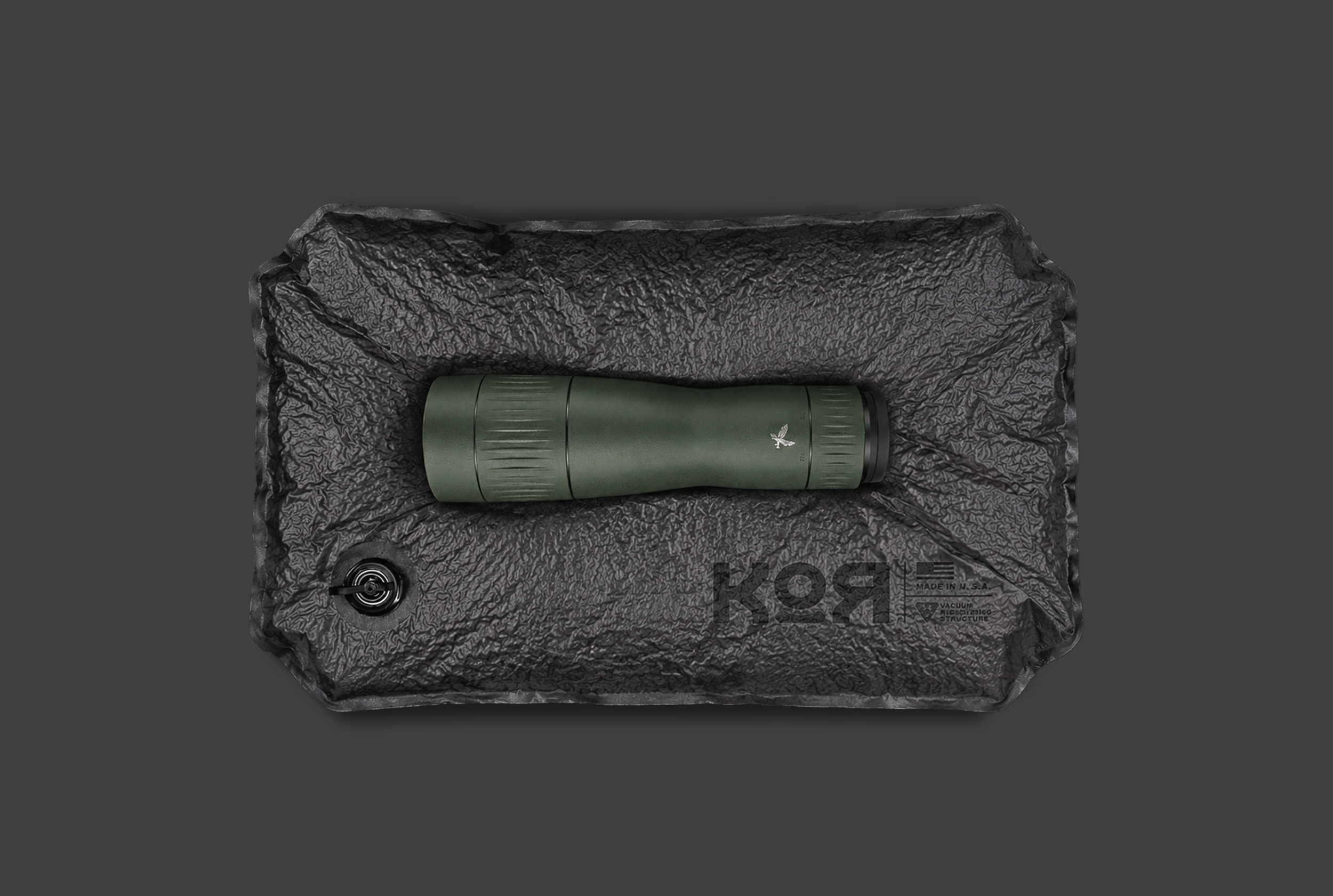

  • A green Range Finder, Optic. On a KOR Protection System single panel. In its Solid state On a gray background.

    Step 3 // Transport

    Sculpt the KOR panel around your gear to create a rigid, secure fit that's ready for transport.

One System Infinite Missions

The KOR Protection System, replaces traditional foam packing with vacuum-rigidizing panels that conforms to your gear, then hardens creating protection against shock, vibration, and movement. Release the air and the system resets ready for your next mission.

One mission rarely looks like the next. KOR gives you a new kind of protection. One that adapts to the gear, the case, and the mission in front of you.

Weapons - Comms - Drones - Optics - Tools

One System Endless Configurations

Fluid to Rigid in Seconds

With millions of micro media touch points that form to any shape or object. The KOR Protection System delivers better vibration and shock attenuation than traditional foam, with better encapsulation and support.

The KOR Protection System allows you to reconfigure load-outs in under 30 seconds.

Change your gear. Not your case. Swap equipment in seconds. KOR panels transform from a fluid state to a rigid state, conforming around virtually any item to create custom-fit protection.

Anywhere any time.

Unmatched 360 Degree Protection

When you transport valuable gear, the outer case only resolves half of the battle. What causes damage happens inside the case. Shock, vibration, and equipment shifting. KOR is designed to eliminate all three.

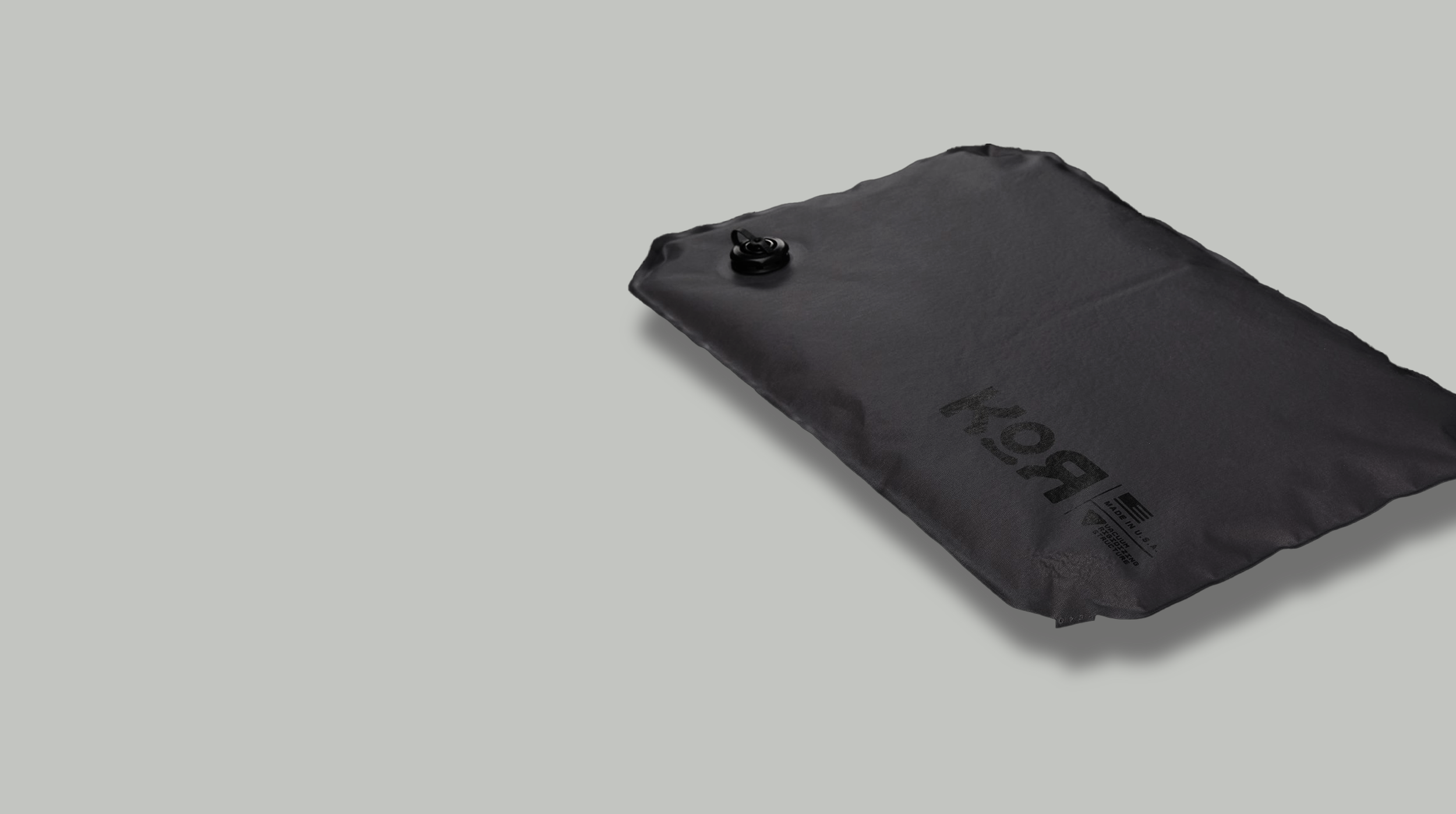

Single Panel

KOR Single Panels are the foundation of the KOR Protection System.

Single panels can be either wrapped and or layered around an asset or assets to offer the maximum protection.

Single panels can be customized to any dimension and accommodate any payload.

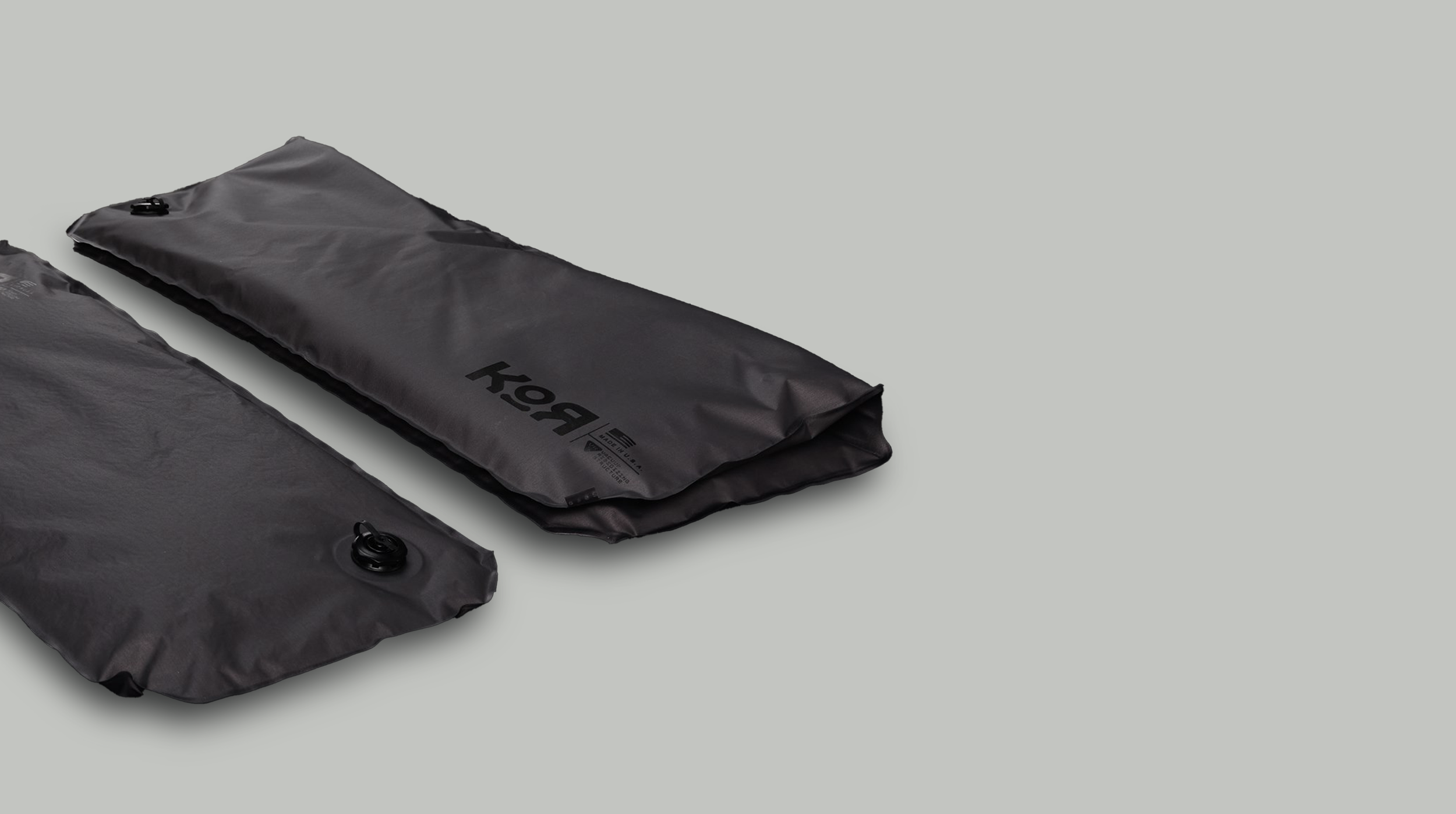

Double Panel

Double panels encapsulate your gear top and bottom. Replacing traditional foam they are designed to work within existing hard cases, encapsulating your gear, providing the superior protection in asset transit.

Two men organizing tactical gear, including scopes, a rifle, and other equipment, inside a black hard case.

No need to be precious.

Wrap your gear, drop it in the case, throw another panel on top, pull a vacuum, and go. Use it as protection. Use it as filler. Use it however the mission demands.

Open tactical gear and equipment bags with various military or outdoor gear, clothing, and binoculars on a table, with two people standing nearby, one wearing beige cargo pants and the other wearing black clothing and holding a headset with a microphone.
A Buddha statue in a meditation pose with a background of columns and wooden elements.
A person aiming a rifle while lying on the ground outdoors with a scope attached, wearing a camouflage baseball cap and gray clothing, with a man standing in the background near a stack of tires, and a wooded area.

The KOR Difference

01

Endless Customization & Adaptability

KOR offers limitless options for protecting your assets with a single system; no more disposable custom packaging or degrading foam. KOR Systems can be engineered for any panel size and thickness and is compatible with outer casings from aluminum to rigid plastic, cardboard, and wood.

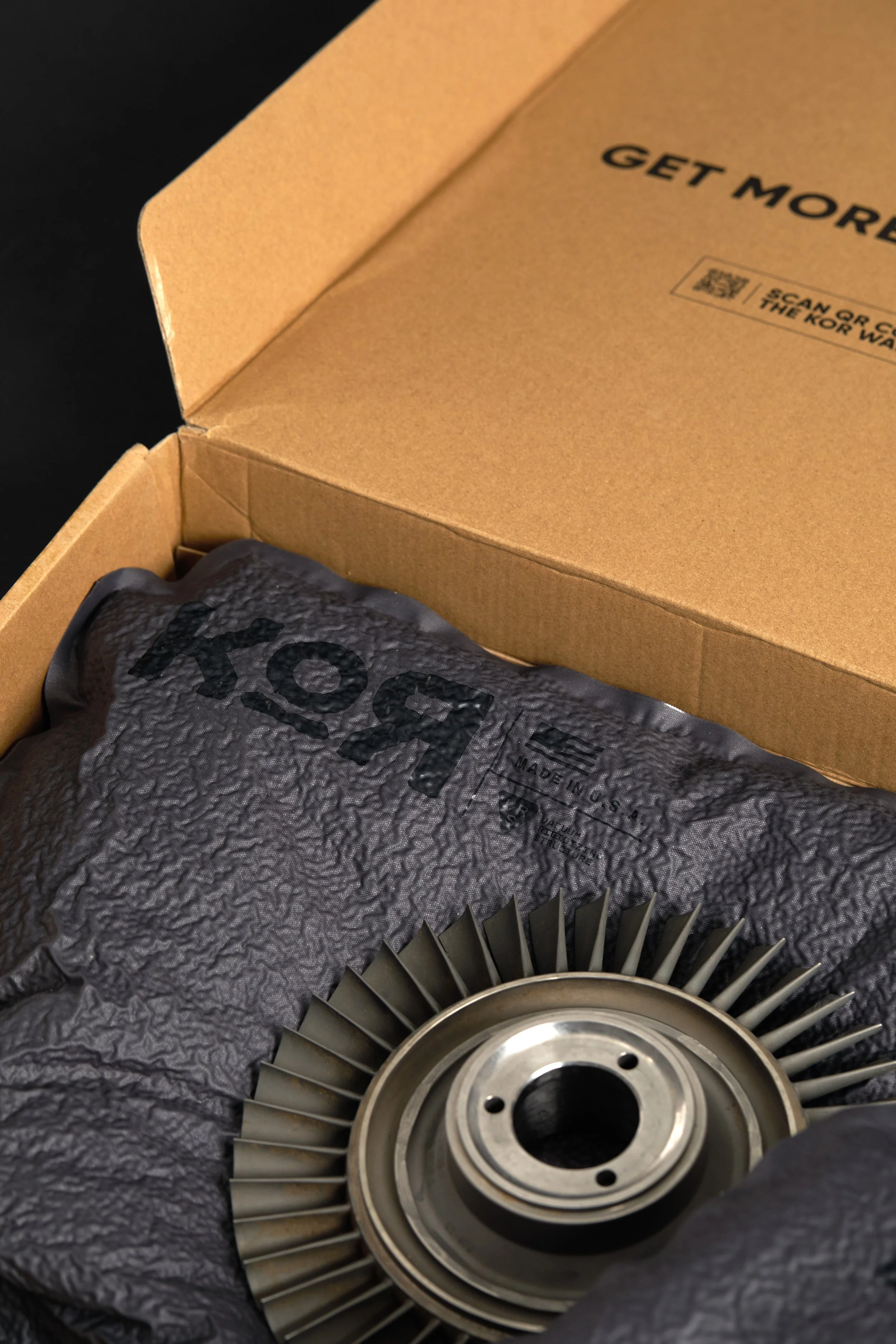

A metal turbine wheel resting on black textured padding inside a cardboard box. The box's top flap is partially open, revealing the turbine wheel.

02

The KOR Media Forms to Any Shape & is Recyclable

With millions of micro media touch points that form to any shape or object. The KOR System delivers better vibration and shock attenuation than traditional foam, with better encapsulation and support.

Person wearing headphones and a cap, kneeling on the floor, organizing tactical gear, including binoculars, ropes, and other equipment, with open cases and storage containers around.

03

Reduces Waste by Eliminating the Need for Foam

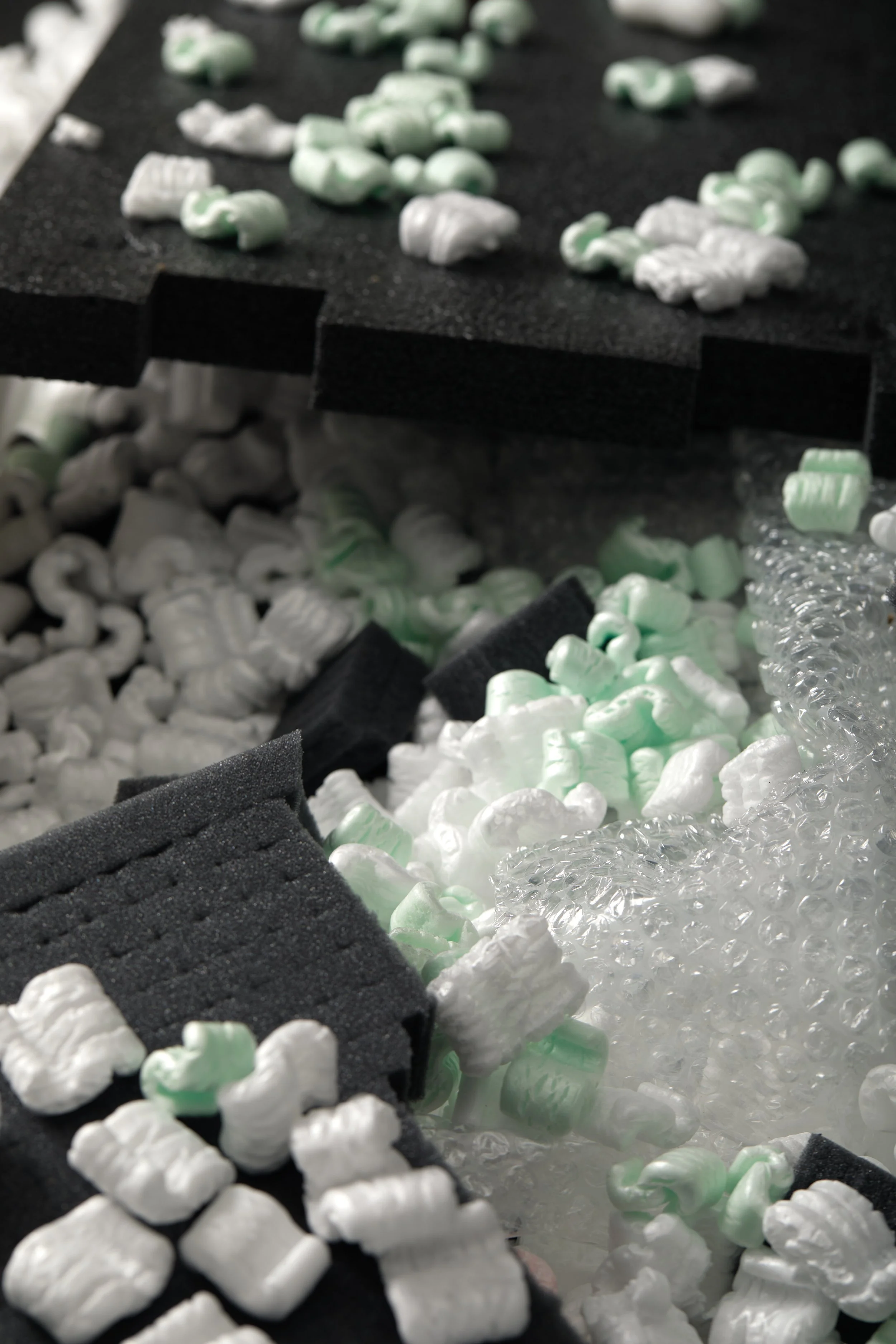

Close-up of a black foam meat tray filled with white and green packing peanuts and some crumpled white paper.

Because KOR panels are customizable, there is no need for multiple cases, custom-cut foam, or additional packing materials.
KOR literally eliminates tons of waste in foam leftovers, making it better for the environment, and it has unlimited use and shelf life.

Surpasses MilSpec Standards

Rugged and reliable, KOR panels passed all MIL 810H testing for temperature, altitude, shock and vibration. Our goal is simple – Encapsulate the asset, control movement and absorb all shock and vibration

Vibration Tested to MIL STD

810H

Method 514.8

Flame Resistant Tested to MIL STD

16 CFR 1610

Tear Strength Meets

ASTM-D2261

– Temperature – MIL STD 810H – Method 550.6 – Approved
– Altitude – MIL STD 810H – Method 501.7 & 502.7 – Approved
– Vibration – MIL STD 810H – Method 514.8 – Approved
– Shock – MIL STD 810H – Method 516.8.2 – Approved
– Air Retention – MIL-C-83489 – Approved
– Flame Resistance – 16 CFR 1610 – Approved
– Environmental – MIL STD 810H – Method 509.7 – Approved
– Tear Strength Meets – ASTM – D 2261
– Compliance – Berry Compliant / Made in the USA

Logo of the Mastercard brand with the text "Berry Complaint" in gray next to it.

Made to Measure

KOR Single Panel / 5013 SYS

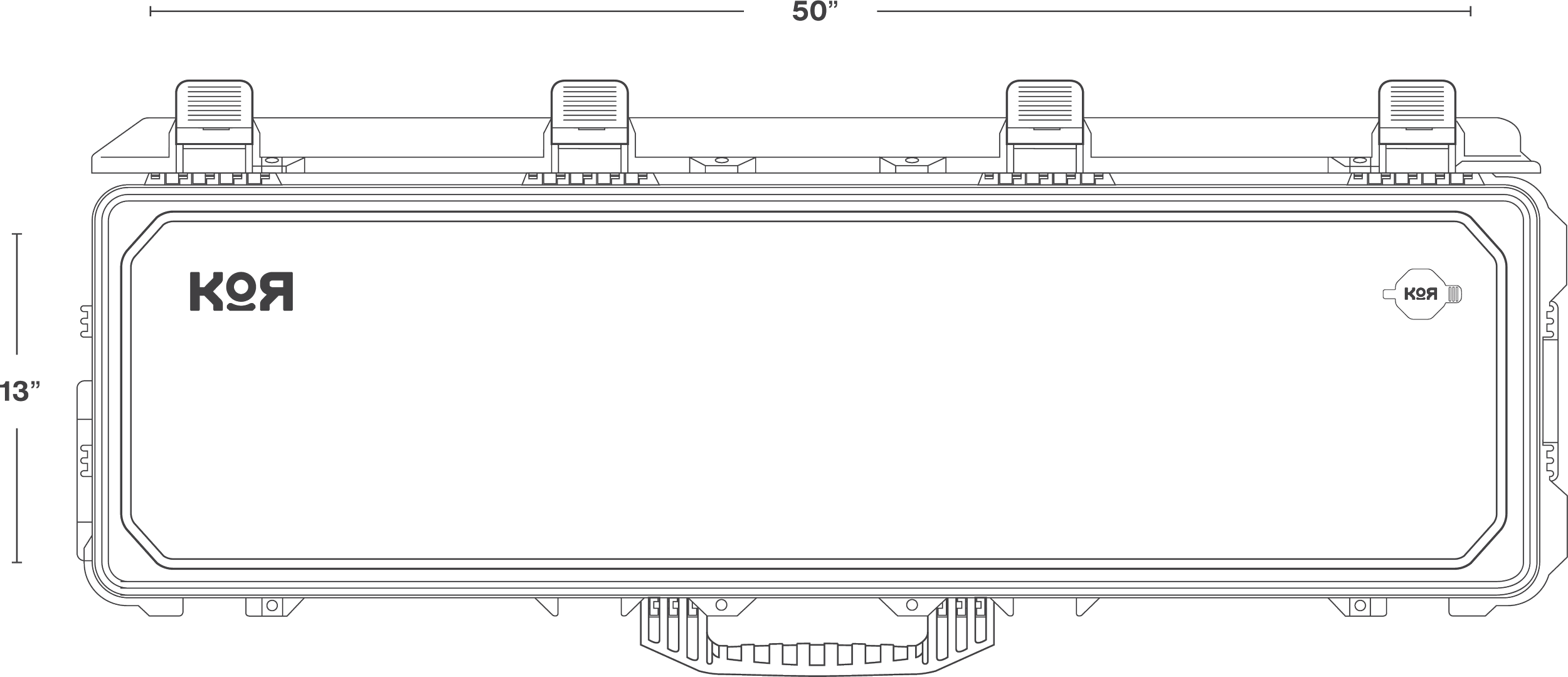

Technical drawing of a rectangular device with four squares on top and a circle on the side, measurements marked in inches.

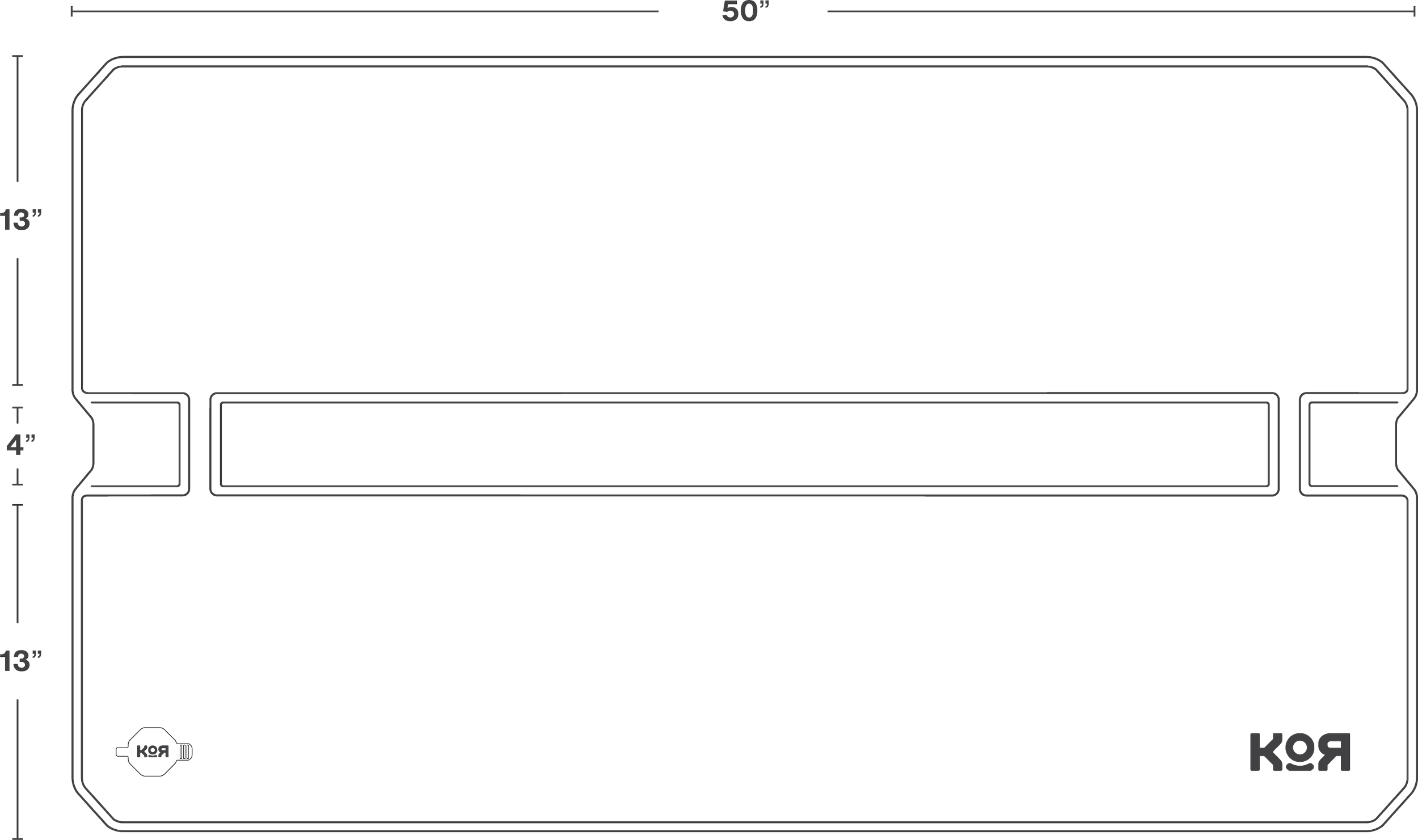

Technical drawing of a large rectangular object with measurements in inches, including 50 inches in length, 13 inches in width, and 4 inches in height. The drawing features various lines and angles, with labels or markings such as 'K9R' in the bottom right corner.

Example Case - Pelican 1750

KOR Double Panel / 5013SYS

A black and white line drawing of a man and woman dancing with a dog sitting nearby.

The KOR Protection System fits standard case sizes. Custom sizes are available upon request.

Contact us for help selecting the right KOR fit for your organization.

Contact KOR

  • Zarges K470

    SKB 4217-7

    Pelican 1650

    Pelican 1660

    Pelican 1615

    Pelican 1646

    Pelican 1700

    Pelican 1720

    Pelican 1750

  • 20” x 11" x 2”

    22” x 14" x 2”

    29” x 18” x 2”

    29” x 20” x 2”

    30” x 16” x 2”

    32” x 16” x 2”

  • 36” x 14” x 4”

    42” x 14” x 4”

    42” x 17” x 4”

    50” x 13” x 4’

  • SINGLE PANEL

    2011SYS // 1 lb

    2214SYS // 1.09 lb

    2918SYS // 1.82 lb

    2920SYS // 1.97 lb

    3016SYS // 1.83 lb

    3216SYS // 2.27 lb

    DOUBLE PANELS

    3614SYS // 3.65 lb

    4214SYS // 3.95 lb

    4217SYS // 5.98 lb

    5013SYS / 4.78 lb

  • Powered by KOR™ Material Technology

    Every KOR product is constructed from advanced performance materials selected for durability, protection, and reliability. Engineered to resist tears, moisture, dust, and contaminants while meeting Berry compliance requirements.

    • Durable performance fabric

    • Rip resistant

    • Water resistant

    • Dust & contaminant resistant

    • Berry compliant

    • Proprietary KOR protective fill

  • KOR System Vacuum Pump

    Purpose-built for the KOR System. Connects directly to any KOR Panel valve to quickly remove air, creating a custom-fit protective solution around virtually any object.

KOR Sizes and Dimensions

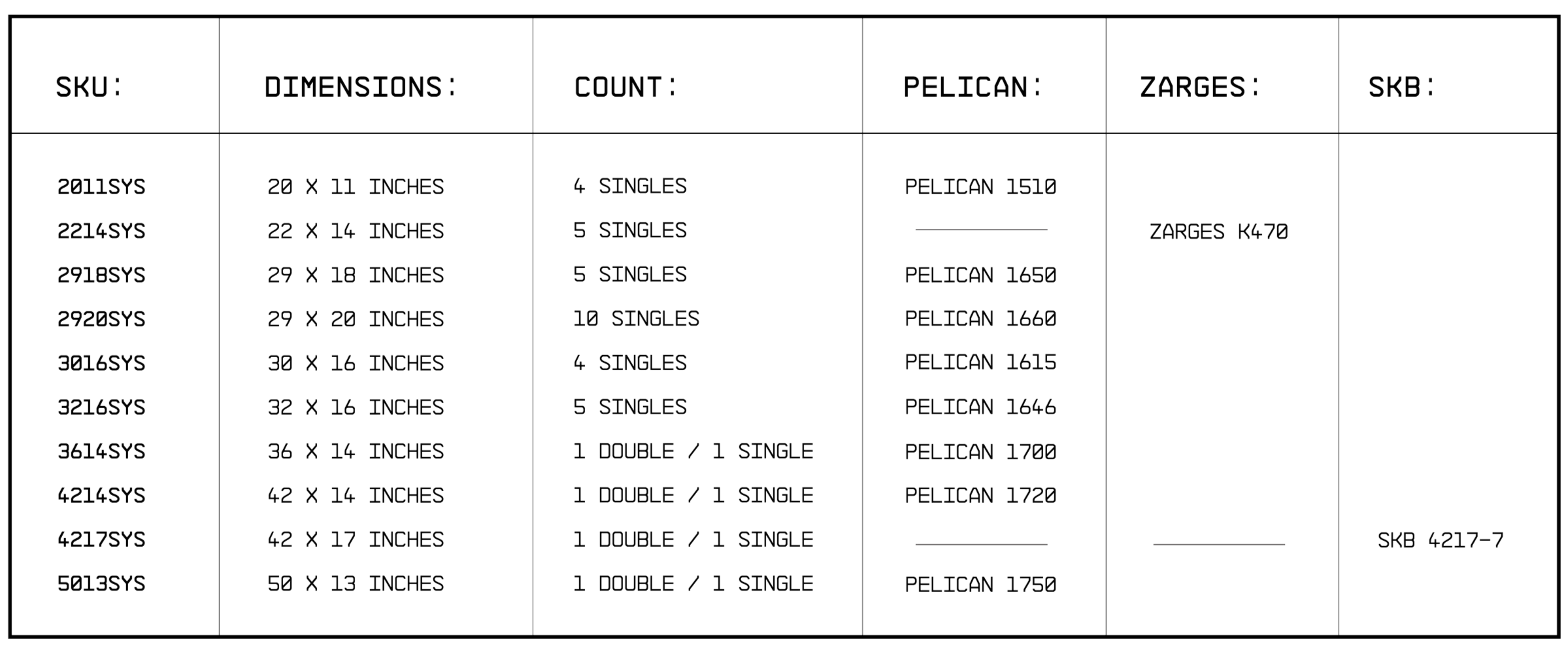

  • A detailed table listing specifications for various items, including SKU, dimensions, count, pelican and zarges model numbers, and SKB codes, with rows for different product sizes and configurations.

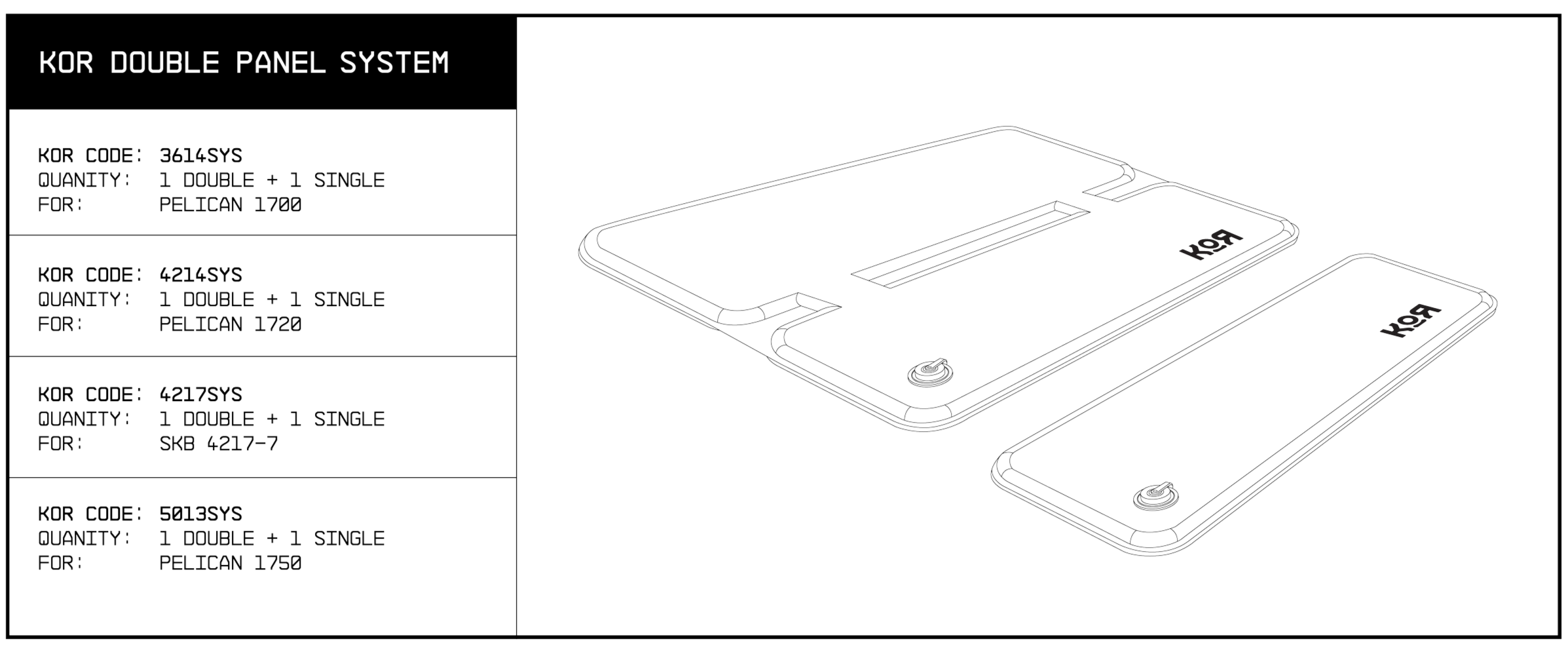

  • Technical drawing of a double panel system with detailed specifications, showing four panels labeled 'KOR' with lines and measurements on a black background.

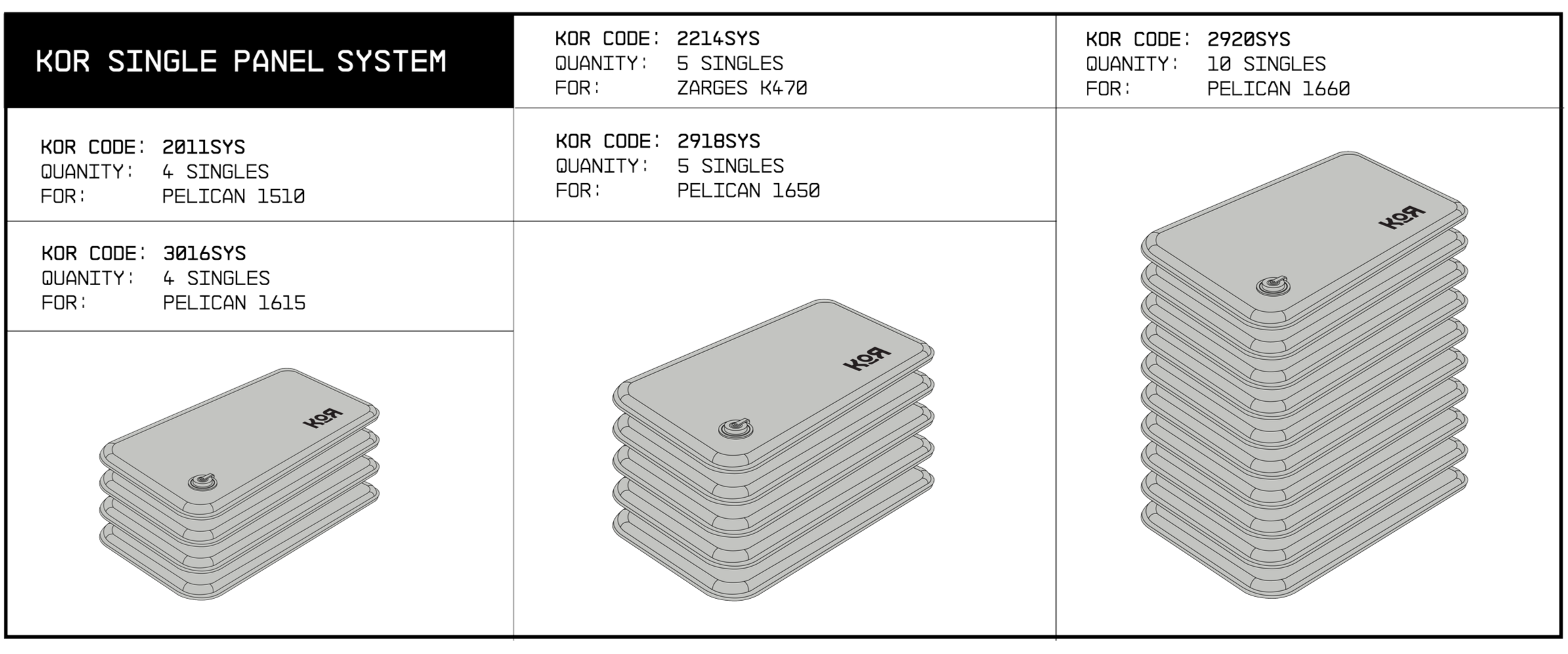

  • Technical drawing of KOR single panel system, showing specifications and illustrations of stacked rectangular panels with rounded edges and a keyhole, labeled with various product codes and quantities.

Get the details

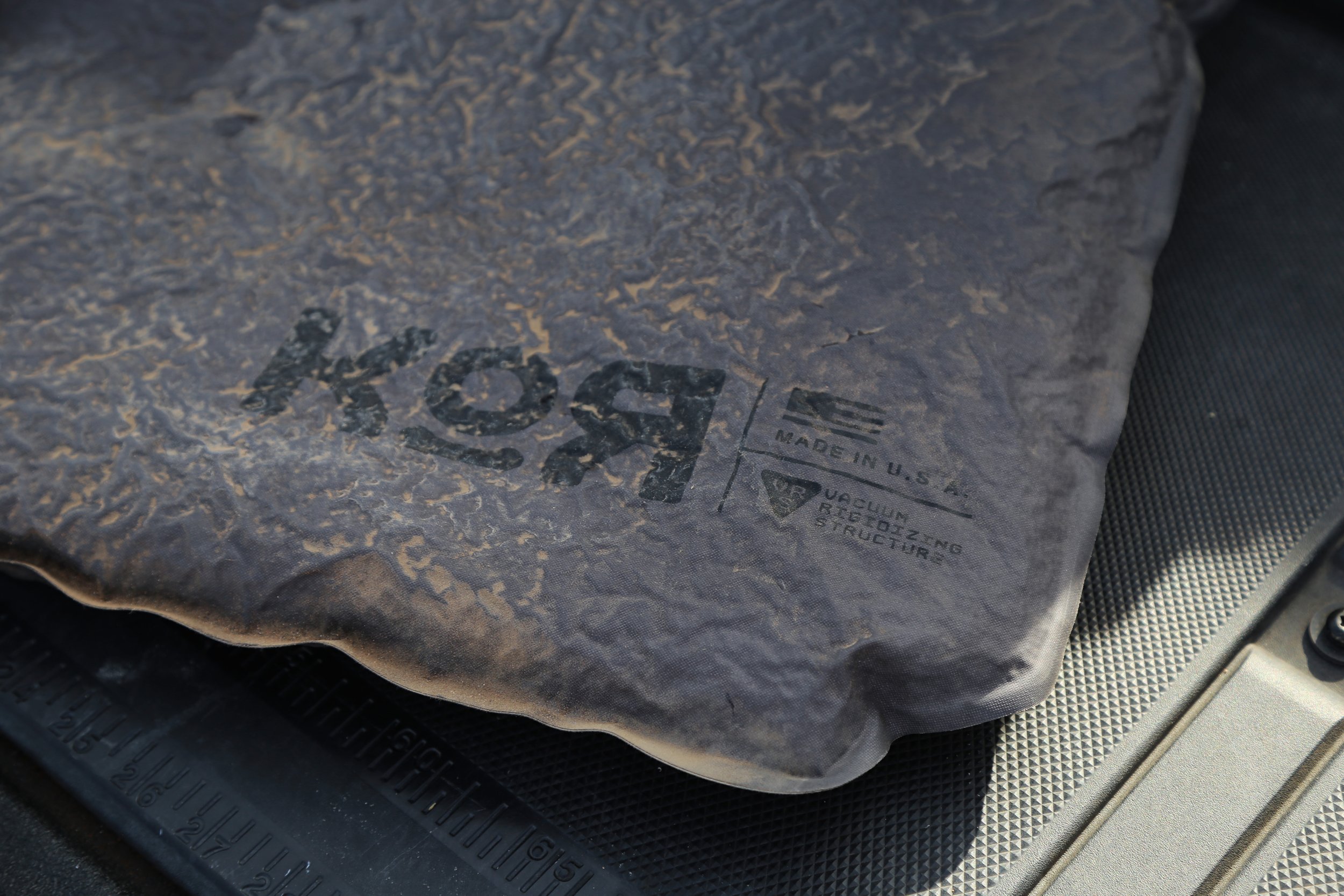

  • KOR Vacuum Rigidizing Structure (VRS) panel covered in dust after heavy use, demonstrating its durable, waterproof, dustproof construction for mission-critical gear protection.

    Takes a beating

    Waterproof, dustproof, and built to endure, KOR keeps your most essential gear safe, secure, and ready for any mission.

  • Tactical-Grade Protection

    Night-vision optics to other high-value, mission-critical equipment, KOR is engineered to protect against shock, vibration, and impact while supporting endless load configurations across a wide range of applications.

  • Operator carrying night vision optics protected inside a KOR Vacuum Rigidizing Structure (VRS) panel in a military field environment. KOR VRS | Waterproof Protection for Mission-Critical Equipment

    Waterproof. Dustproof. Built to endure.

    KOR keeps mission-critical equipment protected, secure, and ready for any environment.

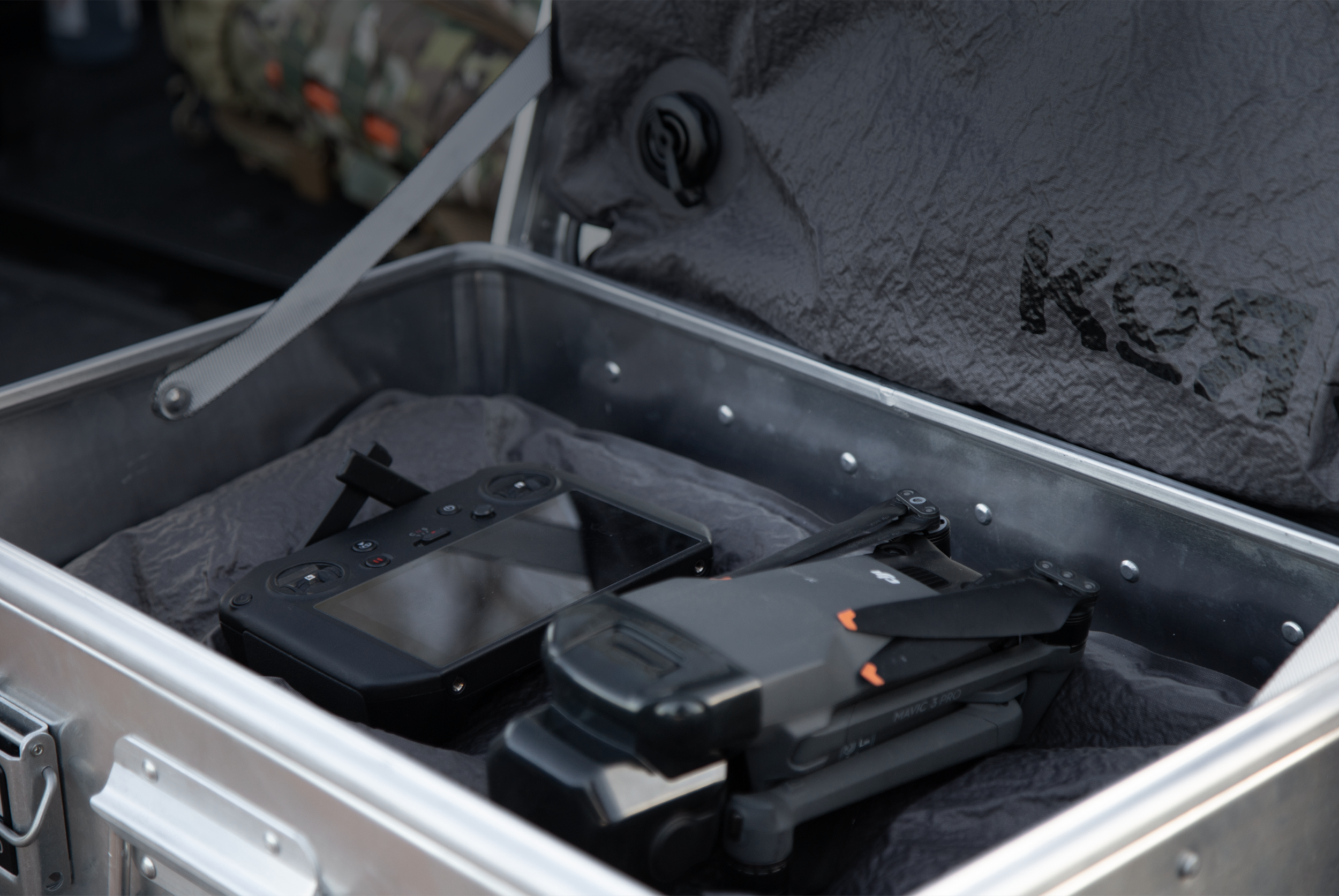

  • Drone and controller securely protected inside a KOR Vacuum Rigidizing Structure (VRS) panel within a rugged transport case.

    Protect Your Gear with Confidence

    Secure firearms, drones, cameras, electronics, and more with the KOR Panel System.

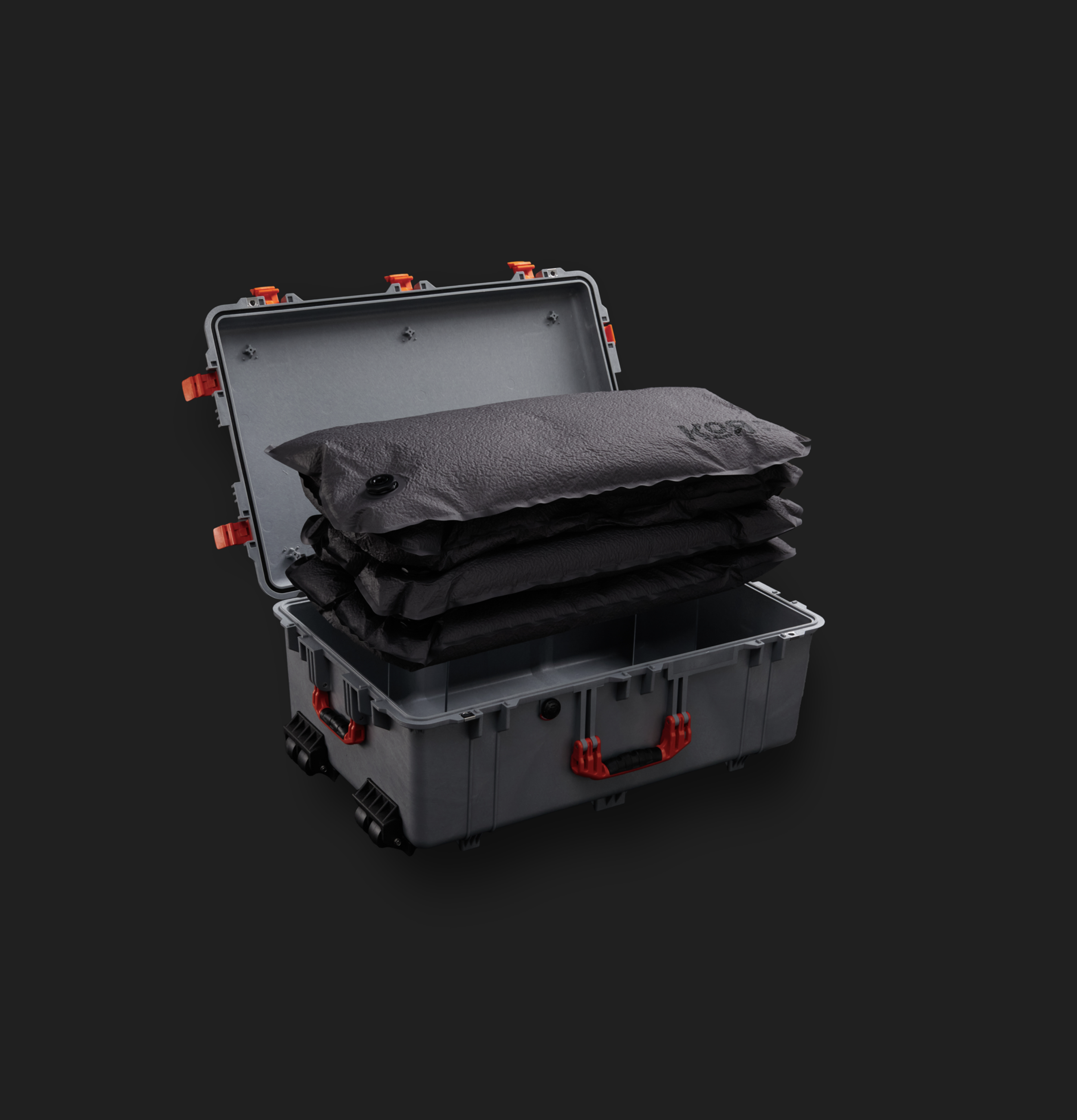

  • Multiple KOR Vacuum Rigidizing Structure (VRS) panels stacked inside a rugged transport case, demonstrating the modular layering system.

    Layering System

    With KOR, you are able to layer assets within the system to utilize the maximum amount of interior space.

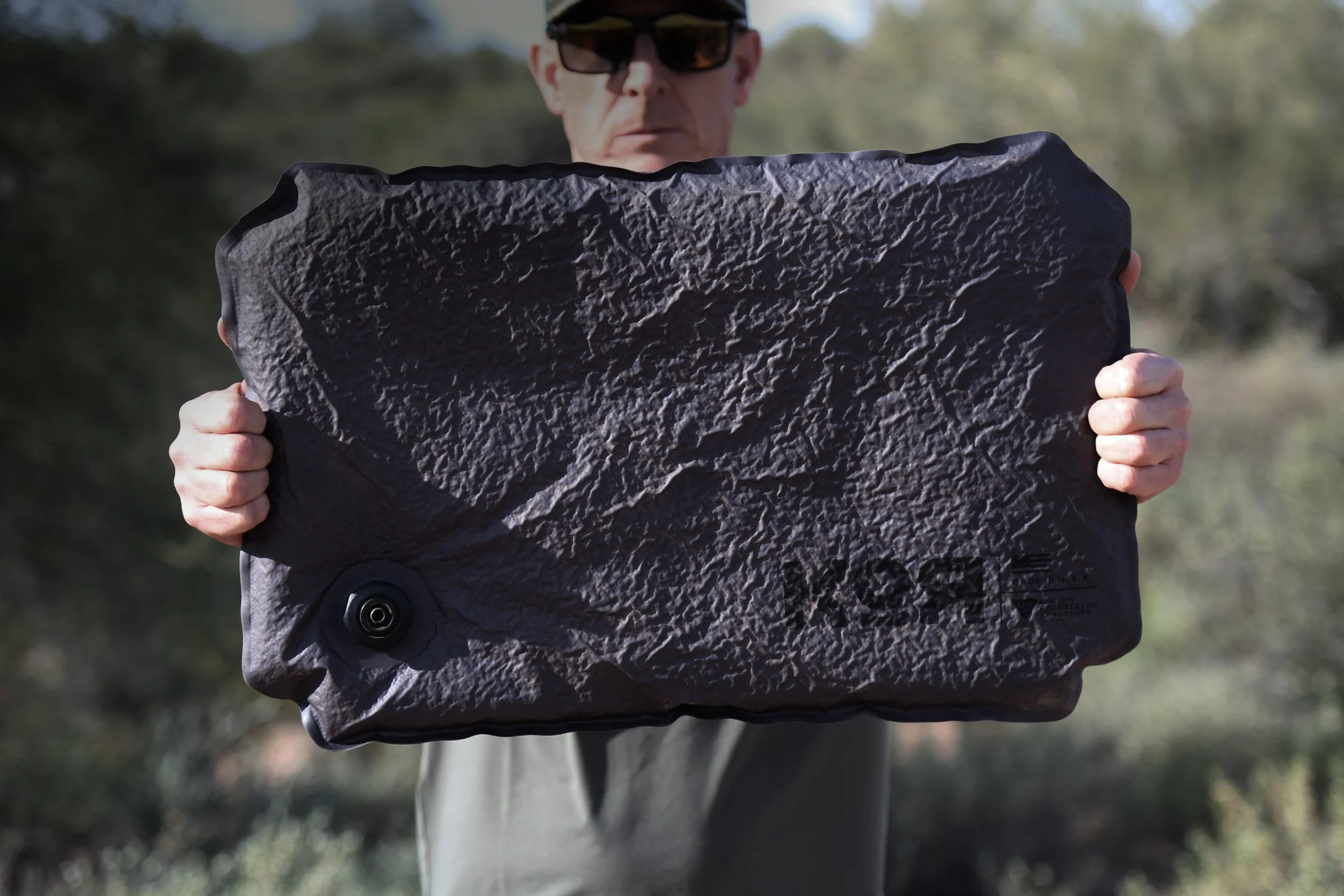

  • Person holding a KOR Single Panel featuring patented Vacuum Rigidizing Structure (VRS) technology for customizable equipment protection.

    KOR Single Panel

    KOR Single Panels are the foundation of the KOR Revolution. KOR Single panels can be wrapped or layered around assets for maximum protection, and can be customized to any size or payload.

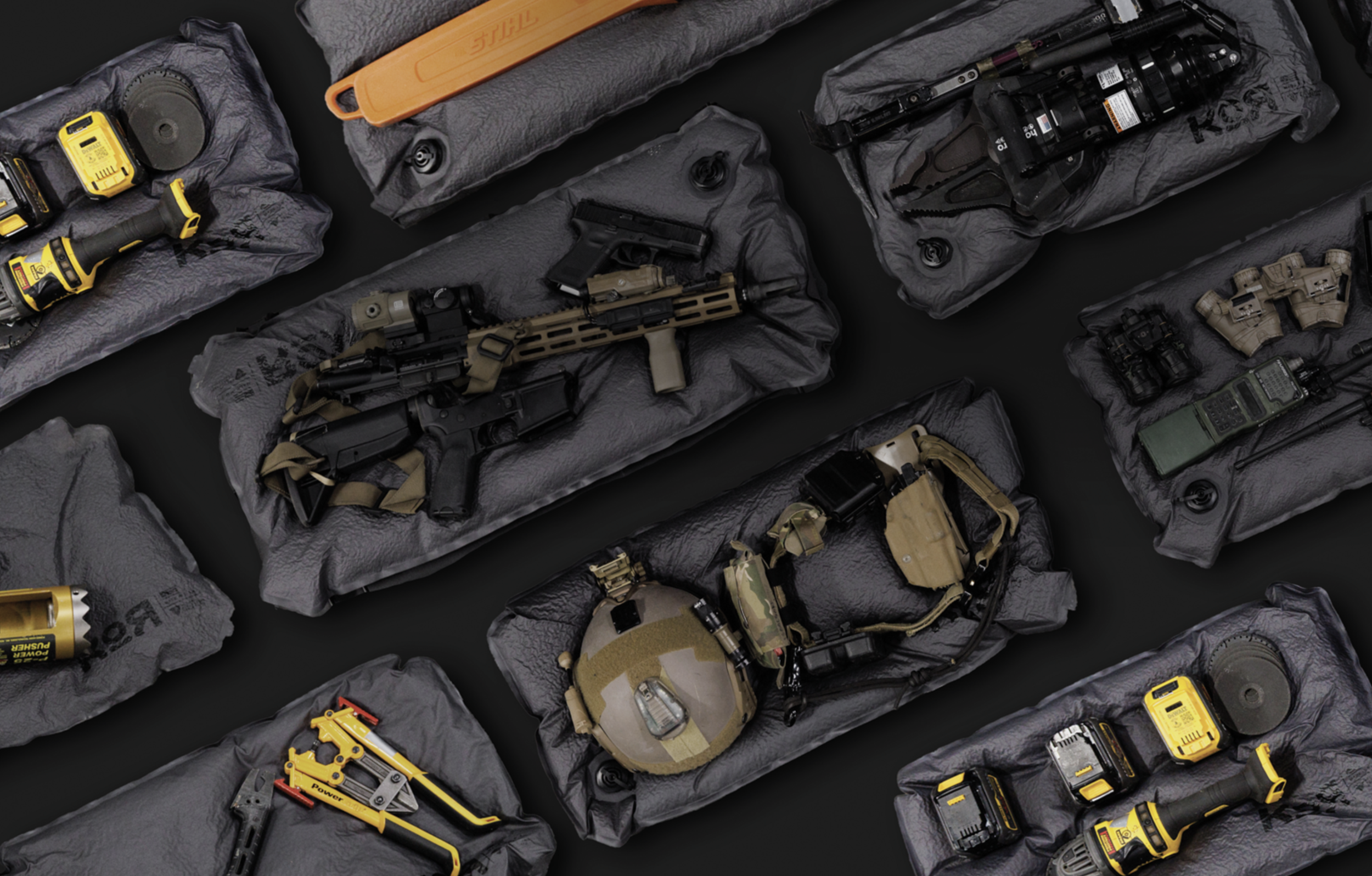

  • One mission rarely looks like the next.

    One mission rarely looks like the next.

    KOR gives you a new kind of protection that adapts to changing equipment. Swap out your gear—not your case, and create a new custom-fit load-out in seconds.

Why the KOR Protection System Replaces Foam.

Foam degrades, absorbs moisture and contaminants, and locks you into a fixed layout.

KOR replaces it with a smarter, tougher, reusable protection system that adapts to your mission. Swap out equipment in seconds, reconfigure on demand, and is impervious to contaminants.

From the field.

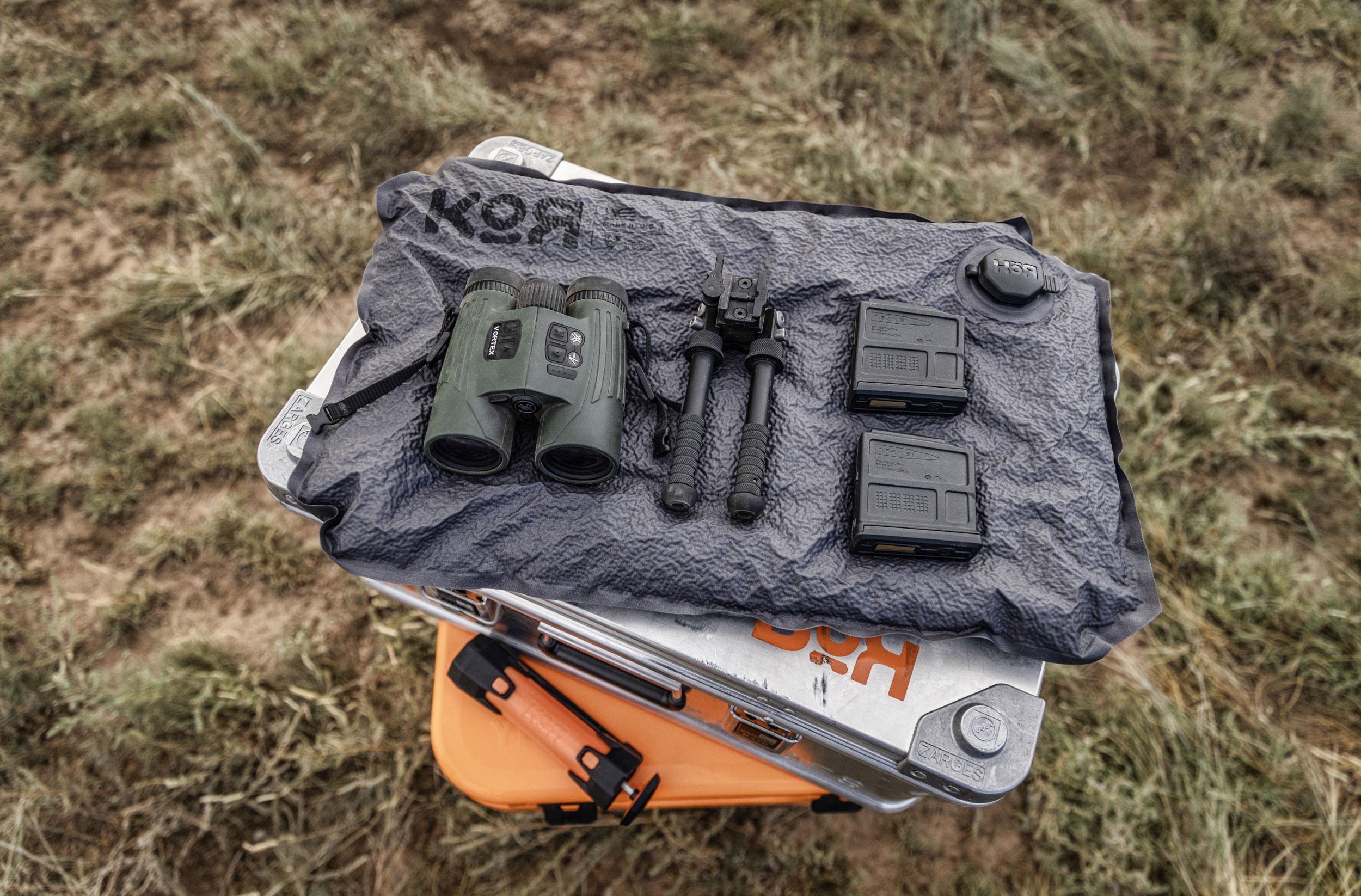

  • Camera and firearm accessories placed on a KOR panel on top of a Zarges case, outdoors on grass.

    Uncomplicated

    “The KOR Protection System is a game-changer. It eliminates the headache of multiple Pelican cases and foam cut-outs for various activities. I don’t need to store multiple foam inserts or modular systems. One case with KOR panels works for everything”.

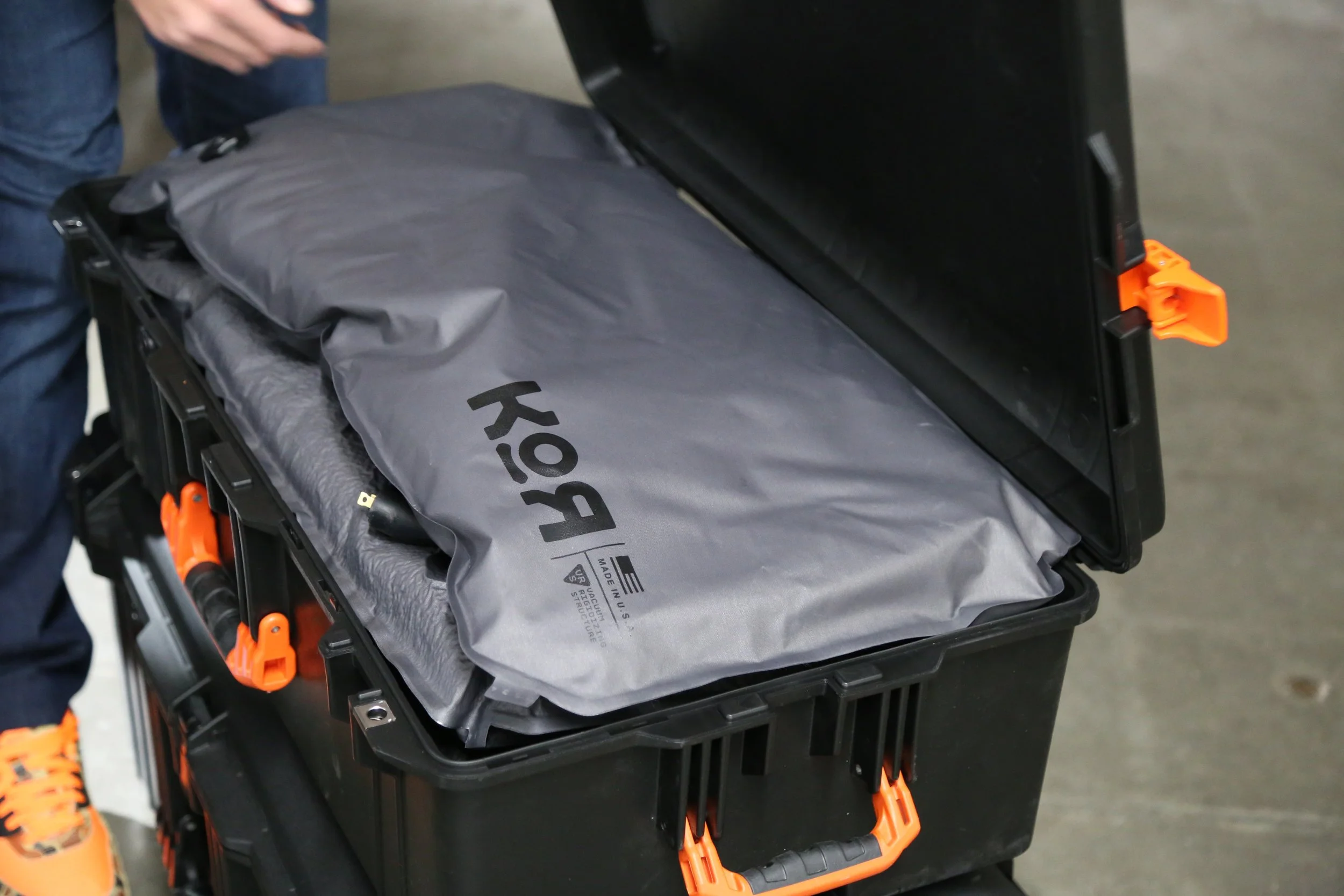

  • A black Pelican case, rolling cart with orange handles and clips, holding a KOR protection system panel KOR brand logo, is shown. A person in jeans and orange shoes is partially visible nearby.

    Super versatile.

    We recently used the KOR Protection System on a mission to protect our gear in transit, and it performed exactly as we hoped. What really stood out was the flexibility. Partway through the trip we needed to bring back additional equipment, and instead of being stuck with fixed foam inserts, we simply reconfigured the KOR panels to fit the new gear.

    That versatility made a real difference. One system handled multiple loads, kept everything protected, and saved us from carrying dedicated foam cases. After using it in the field, it's hard to imagine going back to traditional foam.

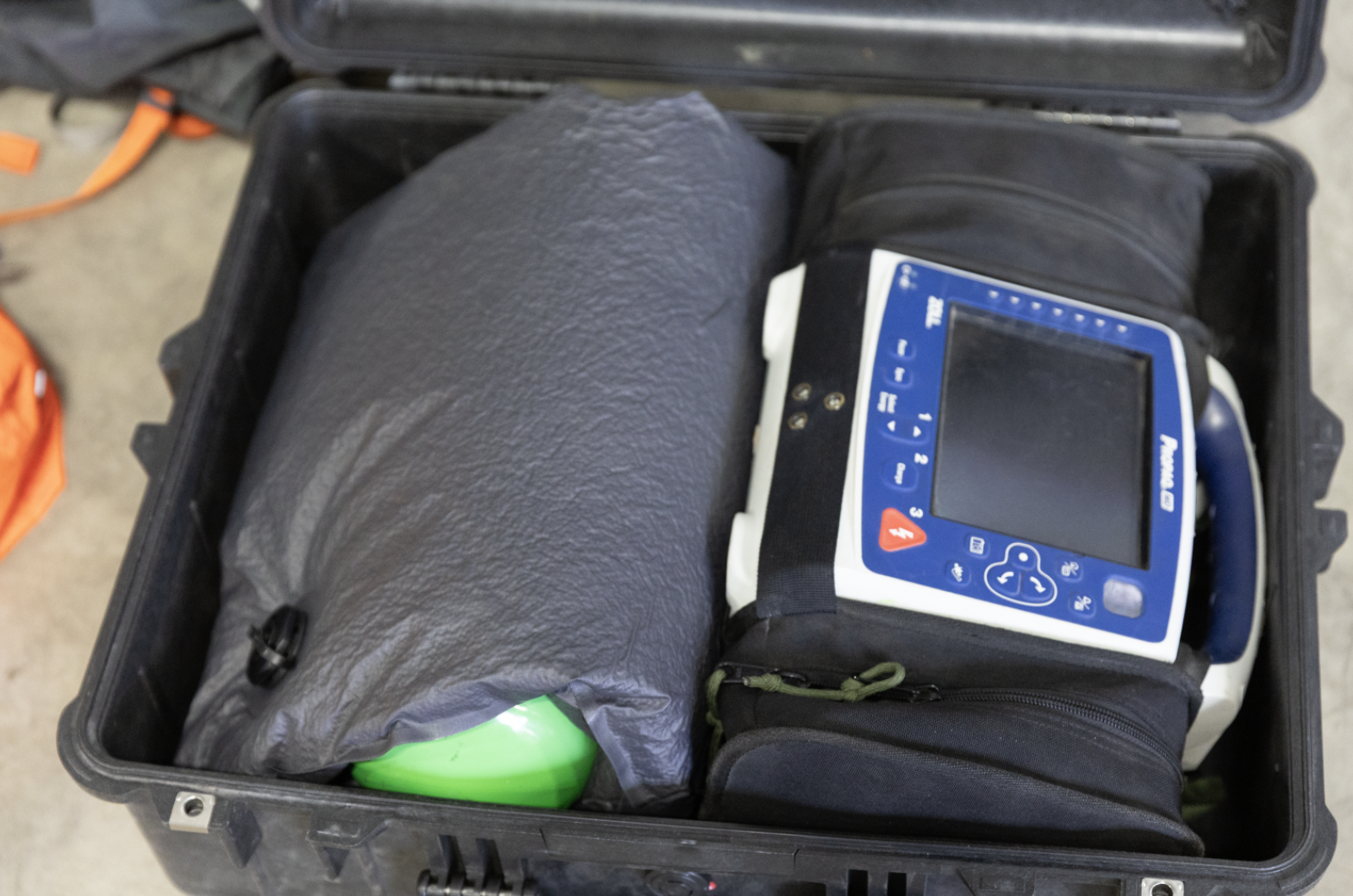

  • A black Pelican hard case containing a portable medical device with a blue and white display screen, a large KOR protection system panel, object wrapped in a black cover, and a green and white item, all inside a black Pelican case.

    Protected our AED no problem

    We started using the KOR Protection System to replace our custom foam inserts, and it completely changed how we pack sensitive equipment. On this trip we had to fit a defibrillator and a few oddly shaped accessories into a single case. Instead of cutting new foam or leaving empty space, we just molded the KOR panel around everything and pulled a vacuum. Everything stayed locked in place during transport, and when the loadout changed, we simply reset the panel and packed it again. It's a much smarter solution than foam if your gear is constantly changing.

  • Climbing gear and equipment laid out on a concrete floor, including backpacks, ropes, carabiners, harnesses, and other safety accessories.

    My new goto.

    I now keep a KOR panel in my backpack all the time. Whenever I need to protect something, I just wrap it, pull a vacuum, and it's ready. It works with whatever gear I'm carrying that day.

Let KOR Protect your assets.

Ready to explore what’s possible? Contact us to learn more about KOR and how we can create custom solutions for you.
